Trendelenburg & Reserve-Trendelenburg

0-12°

Knee section adjustment range

0-35°±10°

Back section adjustable from

0-65°±5°

Product details of the full electric bed

Product Specification

Trendelenburg & Reserve-Trendelenburg: 0-12°

Knee section adjustment range: 0-35°±10°

Back section adjustable from: 0-65°±5°

Product Overview

Always applying the best design idea into our full electric bed is one of the reasons why they are so popular. full electric bed has accumulated many positive feedback from our clients. You can replace our full electric bed for new one without reason within 7 days after buying.

Product Introduction

Compared with products in the same category, full electric bed has the following advantages.

Introduction

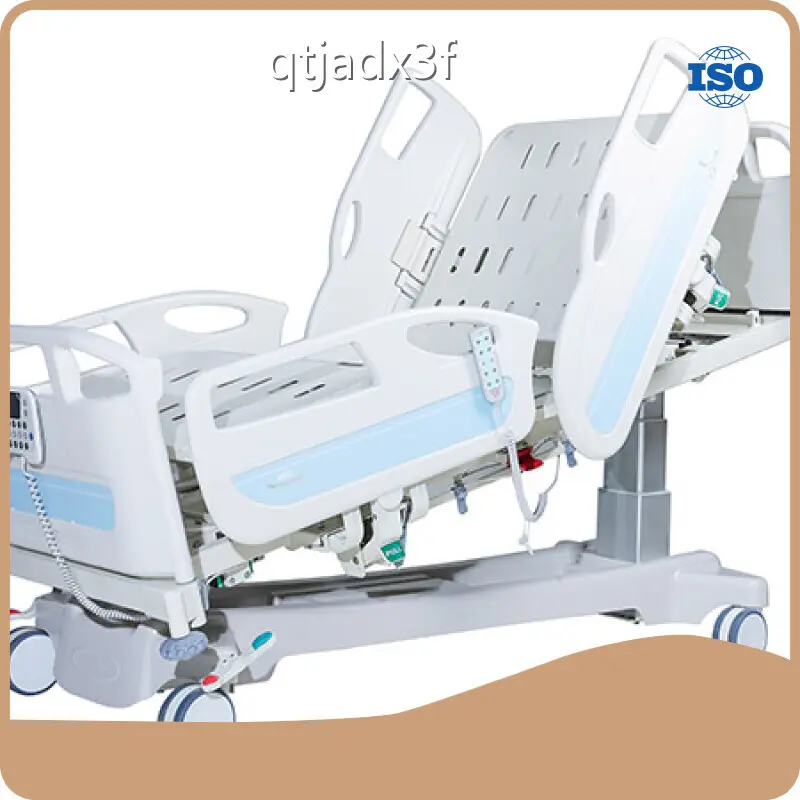

It is a High level ICU bed, widely used in intensive care room. The bed is specialized equipped with column type motor, and left and right tilt function can be reached in this bed. Power, nurse call, alarm signal and weight scale is connected on this bed. we also equipped one back-up battery with this bed in case of power failure.

There is manual and electric CPR function with our bed. We also offer different function of mattress together with the bed like high density pure foam mattress and anti-bedsore mattress. We are committed to provide patients and nursing staff the most comprehensive and fastest beds, to avoid any accident.

External Length	2275mm± 20mm
External width	1080mm± 20mm
Height adjustment range	(510-910mm)± 20mm
Mattress platform size	L1960*W900mm± 10mm
Backrest section adjustment range	0-65°±5°
Knee section adjustment range	0-35°±10°
Leg section adjustment range	0-40°±5°
Trendelenburg & Reserve-Trendelenburg	0-12°
Left& Right tilt angle	0-17°

Configuration List

Bumper wheels: 4pcs

Central-control castors: 4pcs

Sockets of I.V. Pole: 4pcs

Stainless steel I.V. Pole with 4 hooks: 1pc

Movable ABS drainage hooks: 6pcs

Anti-Bedsore mattress: 1pc

Side rails: 4pcs

Foot board remote control: 1pc

Hand-held remote control: 1pc

Angle indicator: 2pcs

Back-up Battery: 1pc

Features

Casters

Double-sideφ150mm luxury castors, center braking system on both side.

Bumper Wheels

Detachable bumper wheel ,protect bed and patient during transportation.

Double layer column

Bed+ integral base+ column (safe static load ≥ 200kg, safe working load of bed ≥ 150kg)

Bed surface

Bed surface is made of cold-rolled steel plate. Plastic mattress stop, non slip.

Electric Motor

DC safety voltage motor drive system and control box. Product protection grade: IPX4. Average operation time ≥ 8000hours.

Head and Foot board

Size:≥ 940 * 535mm. Distance between head &foot board and bed surface: 470mm, 3 hollow positions. Color customized available.

Segmented side rail

Side rails distance: ≤ 60mm Distance between side rail and head and foot board: ≤ 60mm Distance from top to bed : 350mm Color customized available.

Nursing remote control

1.Beautiful appearance with completely independent design. 2.Various functions can be operated, especially weighing system.

Bed surface back plate

Abdominal decompression and automatic regression function

Electric/manual CPR

Electric CPR is operated by one button. Manual CPR can be operated by one hand in case of insufficient power.

Weighing function

Weighing range: 0-150kg (accuracy ≤ 0.2kg); Power off protection function and patient leaving bed alarm function.

Foot board nursing remote control

1.Beautiful appearance with completely independent design. 2.Various functions can be operated, especially weighing system. 3.Touch switch with better feeling.

Product Details

7 function electric bed-6

7 function electric bed-8
